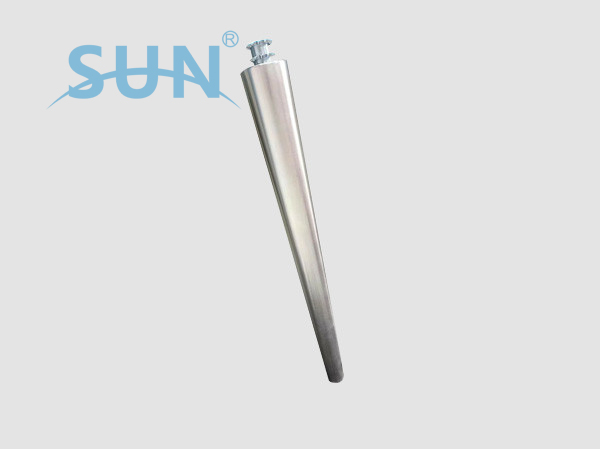

Tapered Roller

Shell Material: 20# Steel

Tube Diameter: φ80–φ120 mm

Wall Thickness: 3–6 mm

Shaft Diameter: φ20–φ55 mm

Surface Treatment: Zinc Plating

Main Application: Curve Conveyors

Inquire

Product Description
Specification

Product Description

Roller Maintenance

To extend the service life of the roller, proper maintenance is essential.

1. Regularly clean the roller to remove accumulated dust and other foreign matter.

2. Periodically inspect the weld joints between the roller shell and the end caps to ensure they remain secure.

3. Ensure proper lubrication to minimize wear and tear.

4. Avoid operating the roller under overload conditions to extend its service life.

Specification

Classification of Rollers

Roller Diameter Options: 60mm, 76mm, 89mm, 102mm, 114mm, 121mm, 143mm, 159mm, 168mm, 203mm, 219mm.

Roller Material Options: Q235 seamless steel (galvanized, chrome-plated, nickel-plated), rubber-coated (black NBR, PU polyurethane, high-temperature-resistant silicone), aluminum alloy, stainless steel, etc.

Roller Shaft Diameter Specifications: 25mm, 35mm, 45mm, 55mm, 60mm, 65mm, 70mm, etc.; utilizing heat-treated and straightened 45# carbon steel shafts.

Roller Type Options: Custom machined rollers, lathe-turned rollers, non-standard custom rollers, standard logistics conveyor rollers, driven rollers, non-driven (gravity) rollers, telescopic conveyor rollers, belt conveyor rollers, cross-belt conveyor rollers, etc.

Categorized by Function/Application: Express delivery conveyor rollers, tobacco industry rollers, pharmaceutical industry rollers, tire machinery rollers.

Categorized by Structure: 45#/Q235 seamless steel tube rollers, stainless steel rollers, etc.
